Sea Water Cooling Pump

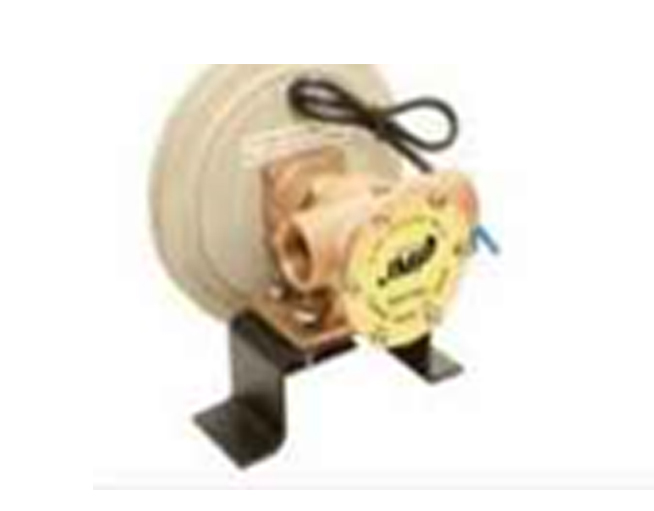

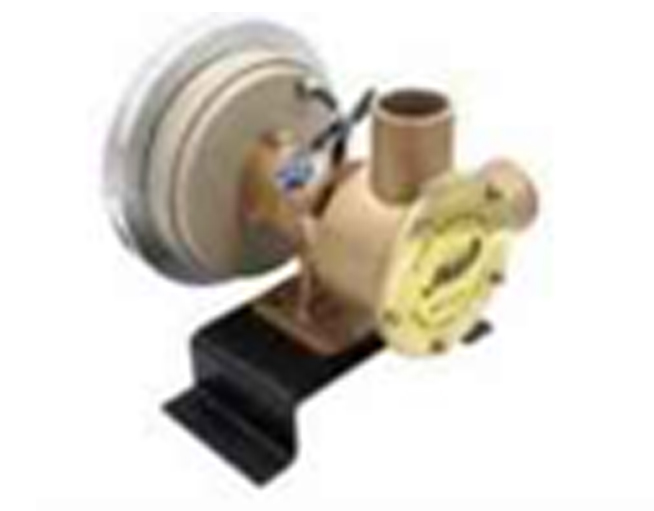

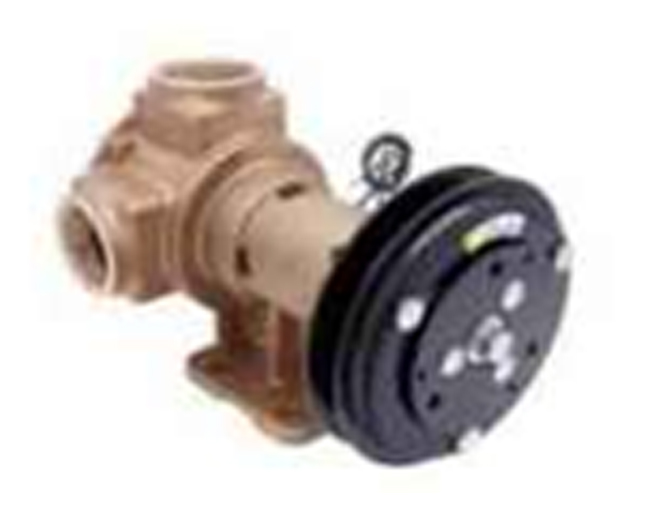

ELECTRIC-MAGNETIC CLUTCH PUMPS

JMP Electro Magnetic Clutch Pumps are multi-purpose pumps widely used in agricultural, industrial and marine applications. Especially in marine uses, it can be used in high capacity bilge or deckwash and emergency fire fighting pumps. JMP clutch pumps have high quality with high performance at a good price so you can use the clutch pumps with full satisfaction of performance and price. You can also replace the worn parts easily. Service kits (minor and major) are available

  • High Power (High Torque), High Capacity
  • Aluminum Pulley-Reduce Belt temperature (M40, M50, M65)
  • Easy to change the Pulley
  • Strong Bronze Body
  • Full Rotation of Pump Ports with rotating Impeller housing (M50, M65)
  • Power Coated clutch surface to resist rust

JPR-M25IP
Port Size 1”,PIPE
Body Bronze
Impeller 7400-01
Shaft Material Stainless
Shaft Seal Mechanical seal
Pulley 7”/1 groove / B section
Clutch Electro-magnetic DC 12V / 24V
Flow(1800rpm) 106 / min
Size(L x W x H,mm) 180 x 178 x 178
Weight (Appx) 8,0 kgs
Pulley 8” 1 groove / C section is available Service Kits (Replacement Parts)are available

JPR-M40LH
Port Size 1-1/2”,HOSE
Body Bronze
Impeller 8001-01
Shaft Material Stainless
Shaft Seal Mechanical seal
Pulley 8” / 1 groove / B section
Clutch Electro-magnetic DC 12V / 24V
Flow(1800rpm) 268 F / min
Size(L x W x H,mm) 237 x 205 x 205
Weight (Appx) 15,0 kgs
Pulley 7” 2 groove / A section is available Service Kits (Replacment Parts) are available

JPR-M4OLP
Port Size 1-1/2", PIPE
Body Bronze
Impeller 8000-01
Shaft Material Stainless
Shaft Seal Mechanical seal
Pulley 5”/1 groove / B section
Clutch Electro-magnetic DC 24V
Flow(1800rpm) 268 l/min
Size(L x W x H,mm) 230 x 148 x 160
Weight (Appx) 8,0 kgs
Service Kits (Replacement Part) are available

JPR-M5OLPL
Port Size 2”,PIPE
Body Bronze
Impeller 8400-01
Shaft Material Stainless
Shaft Seal Mechanical seal
Pulley 8” / 1 groove / B section
Clutch Electro-magnetic DC 12V / 24V
Flow(1800rpm) 448 F / min
Size(L x W x H,mm) 300 x 205 x 205
Weight (Appx) 18,2 kgs
Pulley 8” 1 groove / C section is available Service Kits (Replacment Parts) are available

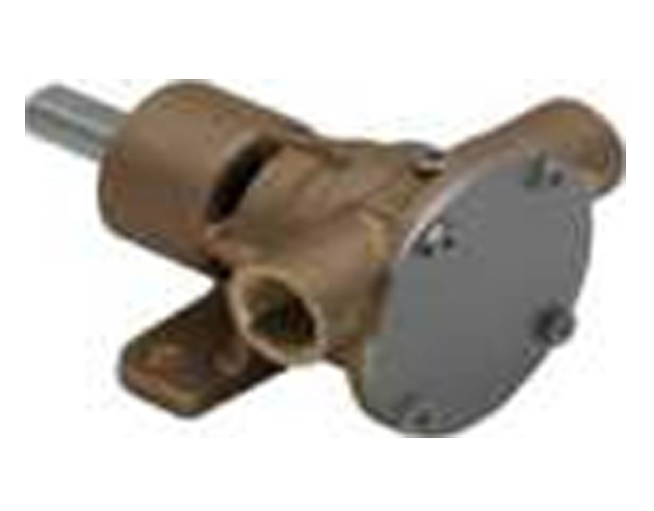

GENERAL MULTI-PURPOSE PUMPS

JMP general multi-purpose pumps are widely used in agricultural, industrial, and marine usages Also, these pumps handle a wide range of liquid transfer, circulation and processing. JMP pumps can give you the most efficient solution which is fit for bottling systems, cleaning solution, The pumps give flow rates from 100 ℓ /min up to 590 ℓ /min (1”to 2-1/2”) at 1800rpm.

JPR-10IP
Port Size PF 3/8-19, PIPE
Impeller 7000-01
Size(L x W x H,mm) 109 x 80 x 59.5
Weight (Appx) 1 kg
Engine Model J/P 24569-01
Service Kits (Replacement Parts) are available

JPR-15UP
Port Size PF 3/8-19,PIPE
Impeller 7050-01
Size(L x W x H,mm) 111 x 80 x 88
Weight (Appx) 1 kg
Engine Model J/P 24570-01
Service Kits (Replacement Parts) are available

JPR-20IP
Port Size PF 3/4-14, PIPE
Impeller 7100-01
Size(L x W x H,mm) 151.5 x 106 x 90
Weight (Appx) 2 kg
Engine Model J/P 24571-01
Service Kits (Replacement Part) are available

JPR-25UP
Port Size 1", PIPE
Body Bronze
Impeller 7400-01
Shaft Material Stainless/ 17mm
Shaft Seal Mechanical seal
Flow(1800rpm) 106 j / min
Size(L x W x H,mm) 158 x 103 x 112
Weight (Appx) 2.7 kgs
Service Kits (Replacement Parts) are available

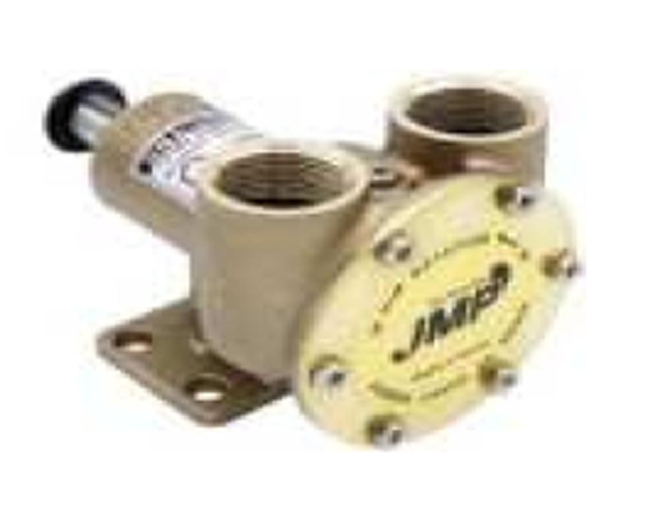

JPR-32LP

JPR-40LP
Port Size 1-1/4", PIPE 1-1/2", PIPE
Body Bronze Bronze
Impeller 7524-01 8001-01
Shaft Material Stainless / 18mm Stainless / 22mm
Shaft Seal Mechanical Seal Mechanical Seal
Flow (1800rpm) 158 j / min 268 j / min
Size(L x W x H,mm) 178 x 120 x 130 186 x 133 x 148
Weight (Appx) 3.6 kgs 4.8 kgs
Service Kits (Replacement Part) are available

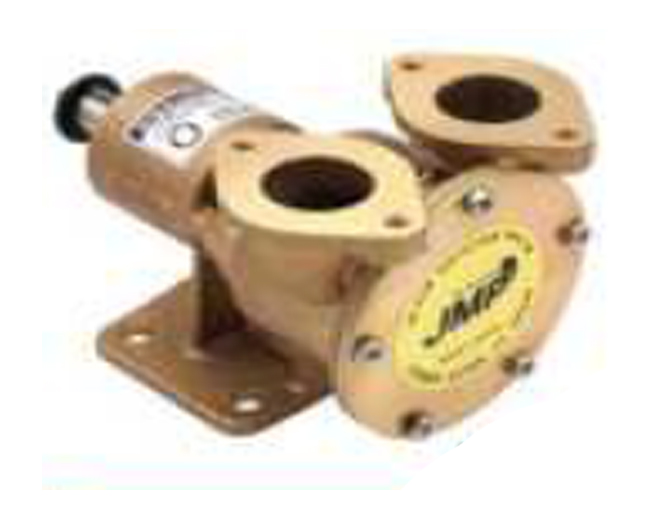

JPR-32UF

JPR-40UF
Port Size 1-1/4", FLANGE 1-1/2", FLANGE
Body Bronze Bronze
Impeller 7524-01 8001-01
Shaft Material Stainless / 18mm Stainless / 22mm
Shaft Seal Mechanical Seal Mechanical Seal
Flow (1800rpm) 158 j / min 268 j / min
Size(L x W x H,mm) 185 x 145 x 135(209) 192 x 145 x 145(230)
Weight (Appx) 3.8 kgs 4.8 kgs
Service Kits (Replacement Part) are available

ENGINE COOLING PUMPS

JMP Corporation is specialized in manufacturing heavy duty raw water pumps, marine engine cooling pumps and spare parts for more than 40 years. These are designed and manufactured especially for engine cooling applications. When you need specific engine cooling pumps please contact us.

JPR-D2500
Port Size IN:27mm OUT:1”/PIPE
Impeller 7400-01
Size(L x W x H,mm) 170 x 94 x 117
Weight (Appx) 3.7 kgs
Engine Model HDI-L034 (HYUNDAI INFRACORE,Formerly Doosan)
Please contact the engine manufacturer

JPR-D2505
Port Size 1”,FLANGE
Impeller 7400-01
Size(L x W x H,mm) 155 x 120 x 123
Weight (Appx) 4.2 kgs
Engine Model HDI-4V158TI,4V222TI (HYUNDAI INFRACORE,Formerly Doosan
Please contact the engine manufacturer

JPR-D3200

JPR-D4000
Port Size 1-1/4", PIPE 1-1/2", FLANGE
Impeller 7500-01 8002-01
Size(L x W x H,mm) 210 x 120 x 140 233 x 140 x 168
Weight (Appx) 5.9 kgs 7.5 kgs
Engine Model HDI-L066TI (HYUNDAI INFRACORE, Formerly Doosan) HDI-L066TI (HYUNDAI INFRACORE, Formerly Doosan)
Please contact the engine manufacturer

JPR-D4005

JPR-D5000
Port Size 1-1/2", HOSE 2", HOSE
Impeller 8001-01 8300-01
Size(L x W x H,mm) 175 x 160 x 160 240 x 160 x 160
Weight (Appx) 5.5 kgs 8.0 kgs
Engine Model HDI-L136 (HYUNDAI INFRACORE, Formerly Doosan) HDI-MD196T (HYUNDAI INFRACORE, Formerly Doosan)
Please contact the engine manufacturer

JPR-D4010
Port Size 1-1/2” IN: HOSE,OUT: FLANGE
Impeller 8001-01
Size(L x W x H,mm) 175 x 160 x 125
Weight (Appx) 6,0 kgs
Engine Model HDI-L034 (HYUNDAI INFRACORE, Formerly Doosan)
Please contact the engine manufacturer

JPR-D5005
Port Size 2” IN: HOSE, OUT:FLANGE
Impeller 8201-01
Size(L x W x H,mm) 216 x 160 x 293
Weight (Appx) 9,2 kgs
Engine Model HDI-L126, 196T(NEW) (HYUNDAI INFRACORE, Formerly Doosan)
Please contact the engine manufacturer

SMALL ENGINES

SEA(RAW) WATER PUMPS AND PARTS

JPR-SE7107
Port Size 3/8-PPT , PIPE
Impeller 7172-01
Size(L x W x H,mm) 111 x 91 x 78
Weight (Appx) 1,2Kg
Engine Model SHERWOOD G907
Service Kits (Replacement Parts) are available

JPR-SE7109
Port Size 3/8-NPT , PIPE
Impeller 7172-01
Size(L x W x H,mm) 115 x 91 x 78
Weight (Appx) 1,2Kg
Engine Model SHERWOOD G909
Service Kits (Replacement Parts) are available

JPR-SE7106
Port Size 3/8-NPT , PIPE
Impeller 7172-01
Size(L x W x H,mm) 102 x 91 x 78
Weight (Appx) 1,2Kg
Engine Model SHERWOOD G906
Service Kits (Replacement Parts) are available

JPR-SE7005
Port Size ø 14,HOSE
Impeller 711-01
Size(L x W x H,mm) 128 x 120 x 120
Weight (Appx) 1,6Kg
Engine Model SHERWOOD G909
Service Kits (Replacement Parts) are available

HIGH SPEED ENGINES

SEA(RAW) WATER PUMPS AND PARTS

CP25UH
Port Size OD ø 32 , HOSE
Impeller 7136-01
Size(L x W x H,mm) 124 x 144 x 117
Weight (Appx) 2.5 kg
Engine Model Indmar, Volvo, Marine Power, PCM
Service Kits (Replacement Parts) are available

JPR-HSP7305
Port Size OD ø 41 HOSE
Impeller 7352-01
Size(L x W x H,mm) 141 x 106 x 123
Weight (Appx) 2.5 kg
Engine Model SHERWOODP1505
Service Kits (Replacement Parts) are available

WESTERBEKE ENGINES

SEA(RAW) WATER PUMPS AND PARTS

JPR-20IP
Port Size 3/8-NPT, PIPE
Impeller 7050-01
Size(L x W x H,mm) 91 x 87 x 82
Weight (Appx) 1.3 kg
Engine Model WESTERBEXE / 48080
Service Kits (Replacement Parts) are available

JPR-25UP
Port Size 1/2-14 NPT PIPE
Impeller 7172-01
Size(L x W x H,mm) 102 x 97,5 x 89
Weight (Appx) 2 kg
Engine Model WESTERBEKE D42175, G908, G903
Service Kits (Replacement Parts) are available

CATERPILLAR ENGINES

SEA(RAW) WATER PUMPS AND PARTS


JPR-20IP

  • ENGINE MODEL
    D343, 0353
  • PUMP P/N
    3N1888
  • WEIGHT(Appx)
    13,66kg

JMP

CAT

DESCRIPTION

QTY

REMARK

1      JPR-CT353

3N1888

SEA WATER PUMP

1



2      BER0005

183867

BALL BEARING

2



3      BOL0005

23501649

SCREW END COVER

6



4      CAMSET0018

3N4850

CAM LINER

1

ALUMINIUM BRONZE

5      COV0011

3N4854

END COVER

1



6      GAK0006

3N4861

GASKET,END COVER

1



7      8300-01

3N4859

IMPELLER

1



8      KE Y0019

188712

KEY

1



9      MCSSET0007

3N5632

MECHANICAL SEAL SET

1



10 ORG0003

3N4866

O-RING

2



11 PN0002

3N4855

DOWEL, PIN

2



12 RET001301

3N4863

OIL SEAT

1



13 SHA0025

3N5692

SHAFT

1



14 SNP0008

3N7759

SNAP RING (SMALL)

1



15 SNP0013

1L3775

SNAP RING (LARGE)

1



16 WER0010

3N4862

WEAR PLATE

2



17 GEA0009

4L8469

GEAR

1

20 TEETH DRIVE

18 J5M0005

N/A

MINOR KIT

1



19 J5K0026

N/A

MAJOR KIT

1

ALL INTERNAL PARTS

CUMMINS ONAN ENGINES

SEA(RAW) WATER PUMPS AND PARTS

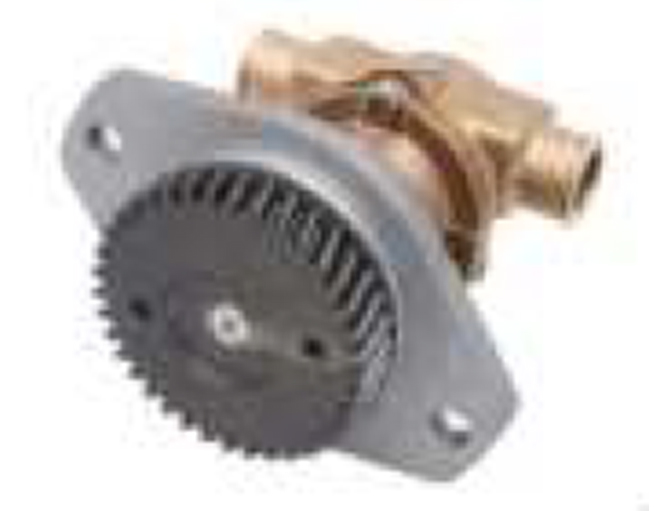

JPR-C1025

  • ENGINE MODEL
    4B3,9M, 4BT3,9M, 4BTA3,9M,6B5,9M, 6BT5,9M
  • PUMP P/N
    3907458, 3912019
  • WEIGHT(Appx)
    3.91 kg



JMP

DESCRIPTION

QTY

REMARK

1

JPR-C1025

SEA WATER PUMP

1

RE-ENGNEERED

2

BER0002

BALL BEARING

2



3

CAMSET0002

CAM SET

1

WITH SCREW & PICKING

4

GAK0023

GASKET

1



5

GEAA007

GEAR

1



6

7300-01

IMPELLER

1



7

KEY00-16

KET, WOODRUFF

1



8

MCSSET0001

MECHANICAL, SEAL, SET

1



9

ORG0013

O-RING, IMPELLER

1



10

PBC0002

HOUSING, IMPELLER

1



11

RET0018

SEAL, OIL

1



12

SHA0051

SHAFT

1



13

SNP0006

SNAP RING

1



14

SNP0009

SNAP RING

1



15

WER0014

WEAR PLATE

1



16

JSM0047

MINOR KIT

1



17

JSK0047

MINOR KIT

1

ALL INTERNAL PARTS

DETROIT DIESEL ENGINES

SEA(RAW) WATER PUMPS AND PARTS

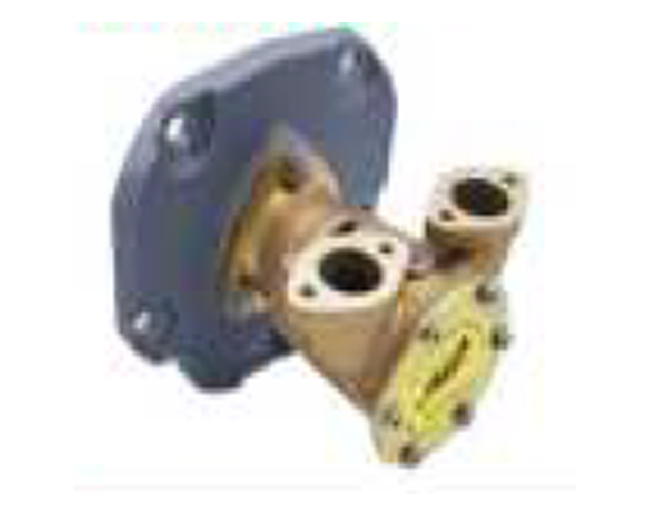

JPR-G6000F

  • ENGINE MODEL
    353,453,471
  • PUMP P/N
    5145578,5145576
    JPR-G600F
    indudes drive gear and mounting adaptor
  • WEIGHT(Appx)
    3.5 kg

NO

JMP

DETROIT

DESCRIPTION

QTY

REMARK

1

JPR-08000F

5145578

SEA WATER     PUMP

1

RE-REQNEERED

2

BER0015

5193391

BALL BEARING

1



3

BOL0080

8927518

SCREW, END COVER

6



4

CAMSET000301

5196696

CAM     SET

1



5

COV001301

8927516

END COVER

1



6

GAK0016

8927517

GASKET, END COVER

1



7

7426-01

5183602

IMPELLER

1



8

KEY0010

N/A

KEY

1



9

MCSSET0006

8927526

MECHANICAL SEAL, SET

1



10

RET0005

5195019

OIL SEAL

1



11

SHA002201

5193675

SHAFT

1



12

SNP0010

8927523

SNAP RING

1



13

WER0001

5195753

WEAR PLATE

1



14

GEA0008

5122648

GEAR

1



15

JSM0028

N/A

MINOR KIT

1



16

JSK002301

5199850

MAJOR KIT

1

ALL INTERNAL PARTS

JOHN DEERE ENGINES

SEA(RAW) WATER PUMPS AND PARTS


JPR-JD25UH

  • ENGINE MODEL
    4039, 4045, 6068 SERIES
  • PUMP P/N
    RE535944

No

JMP

DESCRIPTION

QTY

REMARK

1

JPR-JD2SUH

SEA WATER PUMP

1

RE-ENGNEERED

2

BER0045

BALL BEARING

2



3

BOL0080

END COVER SCREW

6

WITH SCREW & PICKING

4

CAMSET000301

CAM KIT

1



5

COV0003

END COVER

1

RE526661

6

7400-01

IMPELLER

1



7

MCSSET0006

MECHANICAL, SEAL, SET

1



8

ORG0013

O-RING

1



9

RET0040

OIL SEAL

1



10

SHA0087

SHAFT

1



11

SNP0006

SNAP RING

1



12

SNP0009

SNAP RING

1



13

WER0001

WEAR PLATE

1



14

JSM0024

MINOR KIT

1



15

JSK0076

MINOR KIT

1

ALL INTERNAL PARTS

SCANIA ENGINES

SEA(RAW) WATER PUMPS AND PARTS


JPR-SC50IF

  • ENGINE MODEL
    D9,D112,D113, D116 SERIES
  • PUMP P/N
    1785018
  • WEIGHT(Appx)
    7.2 kg

JPR-SC50IF2

  • ENGINE MODEL
    D13 GENSET
  • PUMP P/N
  • WEIGHT(Appx)
    7.2 kg

No.

JMP

DESCRIPTION

OTY

REMARK

1

JPR-SC50F

SEA WATER PUMP

1

RE-REGINEERED

1-1

JPR-SCSOF2

SEA WATER PUMP

1

RE-REGINEERED

2

BER0011

BALL BEARING

1



3

BOL0081

SCREW for END COVER

5



4

CAMSET0016

CAM SET

1

WITH SCREW, PACKING

5

COV0005

END COVER

1



6

8301-01

IMPELLER

1



7

MCSSETОООЗ

MECHANICAL SEAL SET

1



8

ORG0015

O-RING for END COVER

1



9

KEY0036

KEY, DRIVE

1

JPR-SC501F2

10

RET0012

OR SEAL

1



11

SHAD083

SHAFT

1

JPR-SCSHF

11-1

SHAD08301

SHAFT

1

JPR-SC501F2

12

SL10003

SINGER

1



13

SNP0005

SNAP RING

1



14

SNP0014

SNAP RING

1



15

WER0003

WEAR PLATE

1



16

JSM0033

MINOR KIT

1

JPR-SCSOIF(2)

17

JSK0028

MAJOR KIT UPR-SCSOIF)

1

ALL INTERNAL PARTS

17-1

JSK002801

MAJOR KIT UPR-SC501F23



1

ALL INTERNAL PARTS

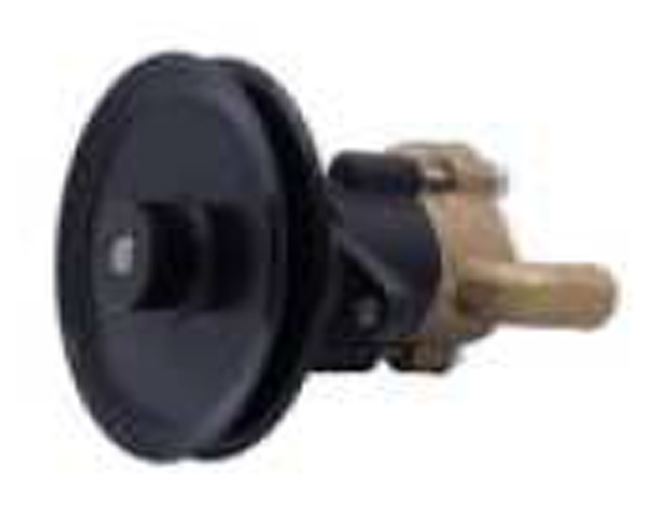

VOLVO PENTA ENGINES

SEA(RAW) WATER PUMPS AND PARTS


JPR-VP2799G

  • ENGINE MODEL
    4.3/5.0GL, 4,3/5.0/5,7GXI, 5,7Gi
    V6-200/225, V8-225/270/300/320
  • PUMP P/N
    21212799
  • WEIGHT(Appx)
    2.61 kg

No

JMP

VOLVO PENTA

DESCRIPTION

QTY

REMARK

1

JPR-VP2799G

21212799

SEA WATER PUMP

1



2

BCLD192

21961332

SCREW, PUMP BODY

4



3

7136-01

21213664

IMPELLER

1



4

ORG0000101



O-RING, SCREW

4



5

PBC0247

3858938

O-RING, IMPELLER

1



6

RET0013



PUMP BODY

1



7

RET0013

827247

LIP SEAL

1



8

SPC0033



SUPPORT BUSH

1



9

PLK0157

N/A

DRIVE ASSY

1

PULLEY, SHAFT, BEARING

SNAP RING, BEARING HOUSING

YANMAR ENGINES

SEA(RAW) WATER PUMPS AND PARTS


JPR-YM07IP

  • ENGINE MODEL
    2GML,3GMD,3GMLE
  • PUMP P/N
    1282700-47002
  • WEIGHT(Appx)
    1.04 kg

No.

JMP

YANMAR

DESCRIPTION

QTY

REMARK

1

JPR-YM07P

128270-42002

SEA WATER PUMP

1



2

BOL0144



SCREW,     END COVER

6



3

BER0069



BALL BEARING

2



4

BOL0043



WASHER

1



5

BOL0197



WASHER

1



6

BOL007801



NJT

1



7

ORG0097



O-RING

1



8

RET0061



RETAINER

1



9

COV0077

X0142398000

COVER

1



10

SHA0197



SHAFT

1



11

SNP0029



SNAP RING

1



12

SPC0046



SPACER

1



13

CAMSET0051

X0142398000

CAM SET

1



14

7001-01

128397-42200

IMPELLER

1



15

JSM0183



MINOR KIT

1



16

JSK0183



MINOR KIT

1

ALL INTERNAL PARTS
Our Office

Ruko Pasar Segar Sukajadi, Jl. Jend. Sudirman Blok RD No. 07, Batam - Indonesia 29462

+62 811 770 8840

operation@sajatek.com

Quick Links
About Us Supply Services Contact Us
Business Hours

Monday - Friday

08:00 am - 05:00 pm

Saturday

09:00 am - 01:00 pm

Sunday

Closed

© 2024 PT. Samudra Jasa Teknik, All Right Reserved.
